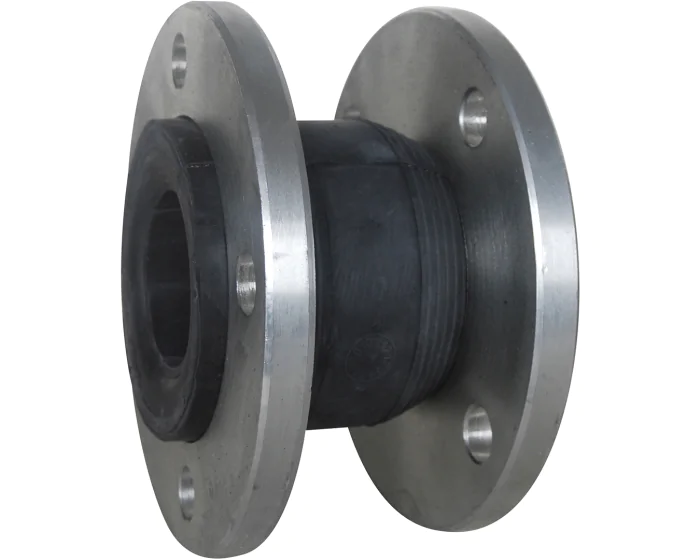

The 1506 series elastomer expansion joint, in steel, PN10 flanged, length 130, with single NBR bellow, vibration absorption for mineral oils, hydrocarbons and fuel oils.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/4 |
| Flange or fitting material | Electro-zinc plated steel |
| Application | Expansion/Vibration Noise absorption |
| DN | DN32 - 1''1/4 |
| Face to Face (mm) | 130.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Body material | NBR |
| PS (bar) | 16 |
| Connections | With rotating flanges PN10/16 |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN10/16 NBR DN32 - 1''1/4 | 1506032 | S1011604 |
€42.04
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN40 - 1''1/2 | 1506040 | S1011605 |
€42.04
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN50 - 2'' | 1506050 | S1011606 |
€42.04
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN65 - 2''1/2 | 1506065 | S1011607 |
€50.46
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN80 - 3'' | 1506080 | S1011608 |
€50.91
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN100 - 4'' | 1506100 | S1011609 |
€57.69
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN125 - 5'' | 1506125 | S1011610 |
€83.34
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN150 - 6'' | 1506150 | S1011611 |
€108.13
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 NBR DN200 - 8'' | 1506200 | S1011612 |
€159.33
(excl. btw)
|
add to cart |
